OVERVIEW

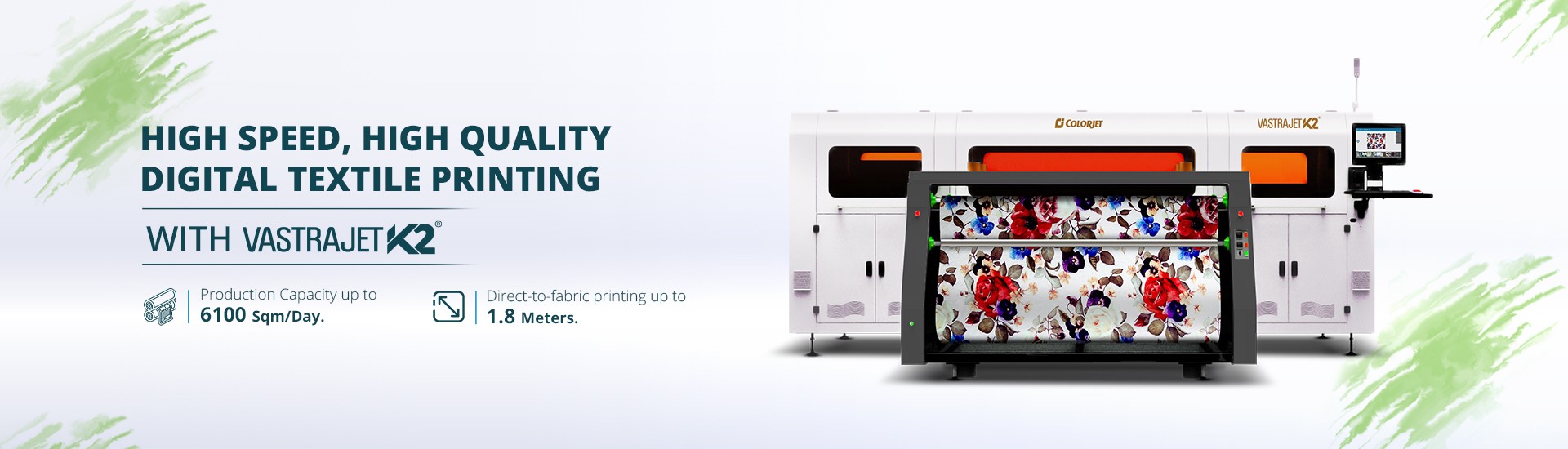

High Speed, High-Quality Digital Textile Printer
Our latest digital fabric printer Vastrajet K2 is a great combination of high speed and high quality. It is the best printing solutions for businesses that want to experiment with different patterns like checks, stripes, geometric designs on fabrics and make them appealing without compromising the quality.
The machine delivers magnificent prints using ColorJet original inks available in the configuration of 8 Colors options and is equipped with 32 Industrial Grade Konica Minolta Print Heads. With the fastest speed upto 269 sqm/hr, Vastrajet K2 can seamlessly print 5000 sqm/day.
FEATURES
EQUIPPED WITH EXCELLENT FEATURES WITH AMAZING SPEED UPTO 269 SQMT/HR
Efficient ink supply system To ensure that the ink runs smoothly and the printing is stable
Linear Motor Allows precise carriage movement
Gold Plated Metal encoder For more accurate ink jetting at high speeds
5 Stages Water Efficient Belt Cleaning System To ensure perfect and easy cleaning of the belt with improved water jet & zero moisture belt drying mechanism
Advance Printing Technologies
Kiloton™ ColorJet introduces new KilotonTM Technology in Vastrajet K2, which significantly extends the print head life
Osci+™ Osci plus TM precise rollers for efficient tension control and smooth fabric feeding, regardless of fabric parameters such as gsm, weave, crimp, elasticity, and skewness
Purgte+™ An ink-saving device that facilitates the removal of air bubbles by recirculating the ink into the circuit.
SPECIFICATION
VASTRAJET K2 |
|||||||
|
CONFIGURATION
|
C8329
|
||||||
| Printing Technology |
Drop-on-demand, Piezo Electric Inkjet
|
||||||
| No. of Print Heads |
32
|
||||||
| Print Heads | Type |
Industrial Grade Jetting Assemblies
|
|||||
| Resolution |
Upto 1440 DPI
|
||||||
| Height Adjustment |
Upto 30mm
|
||||||
| CleaningMethod |
Pressure Purge and Wiping
|
||||||
| Wetting Control |
Piezoelectric Actuations
|
||||||
| Inks | Types |
Reactive/Disperse/Acid
|
|||||
| No of colors |
8
|
||||||
| Supply |
10 Ltr, Bulk ink Supply System with inline degassing
|
||||||
| Fabric | Types |
Cotton,Viscose,Polyester,Polyamide,Silk,Wool
|
|||||
| Max.Thickness |
Upto 20mm
|
||||||
| Max.Width |
1850 mm
|
||||||
| Roll Width |
400mm
|
||||||
| Fabric Drying System |
Infrared Heaters
|
||||||
| Operating Interface |
Touch screen
|
||||||
| Printing Interface |
USB 3.1
|
||||||
| RIP Software Supported |
NeoStampa (Colorjet Editions)
|
||||||
| File Format |
JPEG, TIFF, BMP/PDF (RGB, CMYK)
|
||||||
| Power Supply |
220 V, 104A Single/Three phase load distribution, 50Hz,
|
||||||
| Operating Conditions |
Temperature 18 to 28 C, Humidity: 35-80% RH ( Non-Condensing)
|
||||||
| Printer Dimension / Net Weight |
4898 mm x 2250 mm x 1850 mm (LxWxH) / 3250 Kg. Approx.
|
||||||
| Dryer Dimension / Net Weight |
2590 mm x 1770 mm x 1318 mm (LxWxH) / 850 Kg. Approx.
|
||||||
| Feeder Dimension / Net Weight |
2382 mm x 820 mm x 1160 mm (LxWxH) / 720 Kg. Approx.
|
||||||
| Speed In Sq. Meter/Hrs) |
Print DPI
|
Passes
|
Speed(In Sq. Meter/Hrs)
|
||||
| Mode 1 |
|
2
|
269 |
||||
| Mode 2 |
|
3
|
194
|
||||
| Mode 3 |
540 x 1440
|
4
|
148
|
||||
