OVERVIEW

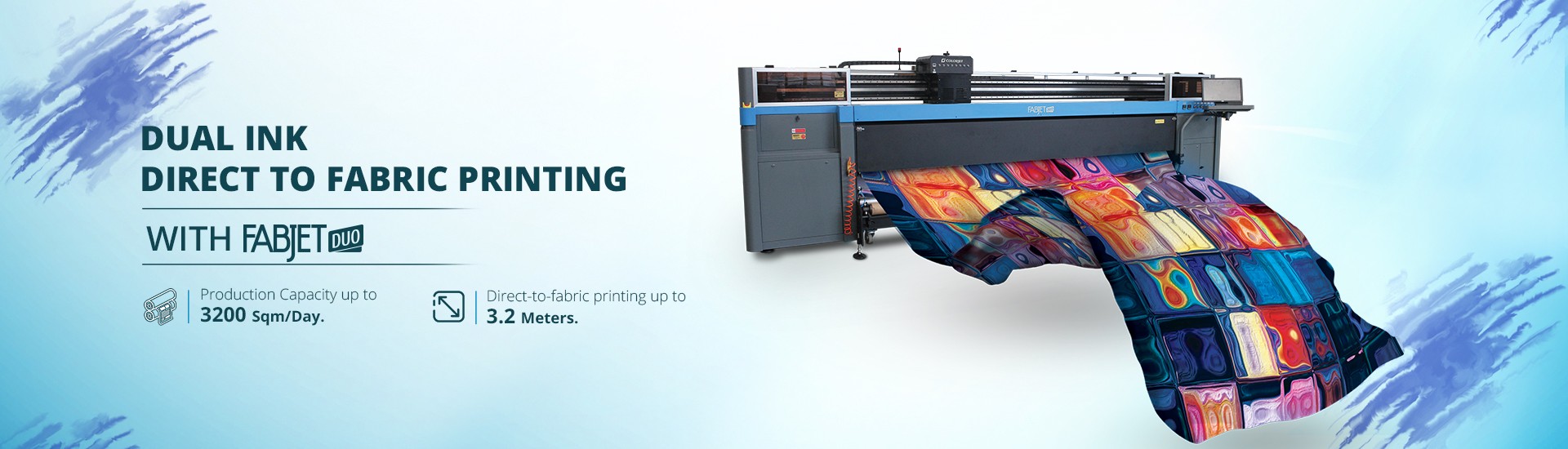

3.2 M Dual Ink Direct to Fabric printer

---

The power of two, FABJET-DUO is an Indian-made direct to textile printing machine designed after recognizing the need in the market for a printer that can work simultaneously with different inks and fabrics. This revolutionary printer is an avant-garde 3.2 meters wide format fabric printer offering the 'Power of Two' in one machine for printing home textiles. As the name suggests, this printer has a dual ink supply system which gives one the freedom to choose between any two of the three inks; Reactive, Disperse, and Pigment and thus by just a flick of a switch, the printer becomes a reactive or pigment or disperse printing machine. This Indian made direct to textile printing machine achieves speedy and brilliant results at minimized costs.

FEATURES

FABJET-DUO comes with a unique feature of choosing any two inks at the same time, out of the three inks- Disperse, Reactive, and Pigment. This makes it first-ever Indian textile printing machine that runs with dual inks. The brilliance of FABJET-DUO, our wide format fabric printer can be measured through its ability to double your profit and ROI. This is a transforming machine that meets designer home textile needs with ease. This versatile Indian made direct to textile printing machine gives you the freedom to choose between a variety of fabrics and inks, thus opening endless avenues for your business. This brilliant wide format fabric printer gives high-quality prints at a super speed in just a one-step process. With FABJET-DUO, produce vivid and sharp images at low running costs with reduced consumption of ink. Smooth gradations and no limitations on colors make this machine a perfect solution for numerous applications. FABJET-DUO is equipped with 8 industrial grade jetting assemblies for long service life. Its fabric feed and take-up system maintains fabric tension from start to finish and makes sure of the smooth movement of the fabric. This fabulous direct to fabric machine has an inbuilt infrared dryer for quick drying of printed ink on the fabric. It comes with a 2.5-liter ink tank for long ink refilling cycles. This Indian made direct to textile printing machine has inbuilt filters for keeping out impurities or larger particles from the print head.

---

SPECIFICATION

FABJET-DUO works on the technology of Drop-on-demand, Piezoelectric Inkjet that prints up to the high quality of 1440 DPI with the option of 4 colors and 8 print heads. It is a high-speed wide-format fabric printer with a speed of up to 62 sq. meters per hour. It offers the convenience of varied file formats including JPEG, TIFF, BMP, PDF (RGB/CMYK). Print heads are cleaned through the method of pressure purge and wiping. The touch screen interface makes it easily operable. The printer comes preloaded with ColorJet edition of the RIP software with an advanced color management engine and color processing tools.

FABJET DUO
CONFIGURATION			N4412	N4424
Printing Technology			Industrial Grade Jetting Assemblies
No. of Print Heads			8	8
Print Heads		Type	Industrial Grade Jetting Assemblies
		Resolution	Upto 1400 DPI
		Height Adjustment	upto 30mm
		Cleaning Method	Pressure Purge and Wiping
		Wetting Control	Piezoelectric Actuations
Inks		Types	Reactive / Disperse / Pigment / Acid
		No of colors	4	4
		Supply	2.5 Ltr, Bulk ink Supply System with inline degassing
Fabric		Types	Cotton,Viscose,Polyester,Polyamide,Silk,Wool
		Max.Thickness	Upto 5mm
		Max.Width	3200mm
		Roll Width	400mm
Fabric Drying System			Infrared Heaters
Operating Interface			Touch screen
Printing Interface			High Speed USB
RIP Software Supported			ErgoSoft (Colorjet Editions)
File Format			JPEG, TIFF, BMP/PDF (RGB, CMYK)
Power Supply			220 V, 32 A Single/Three phase load distribution, 50Hz,
Operating Conditions			Temperature 18 to 28 C, Humidity: 35-80% RH ( Non-Condensing)
Outer Dimension/Weight			5300 mm x 1440 mm x 1650 mm (LxWxH) 1800 Kg Approx.
Speed (In Sq. Meter/Hrs)	Print DPI	Passes	N4412	N4424
Mode 1	360 x 1080	3	NA	62
Mode 2	360 x 720	4	NA	46
Mode 3	720 x 720	4	41	49
Mode 4	720 x 540	6	22	26
Mode 5	720 x 720	8	20	24
