5.2m High-performance Digital Carpet Printing Solution.
Specification

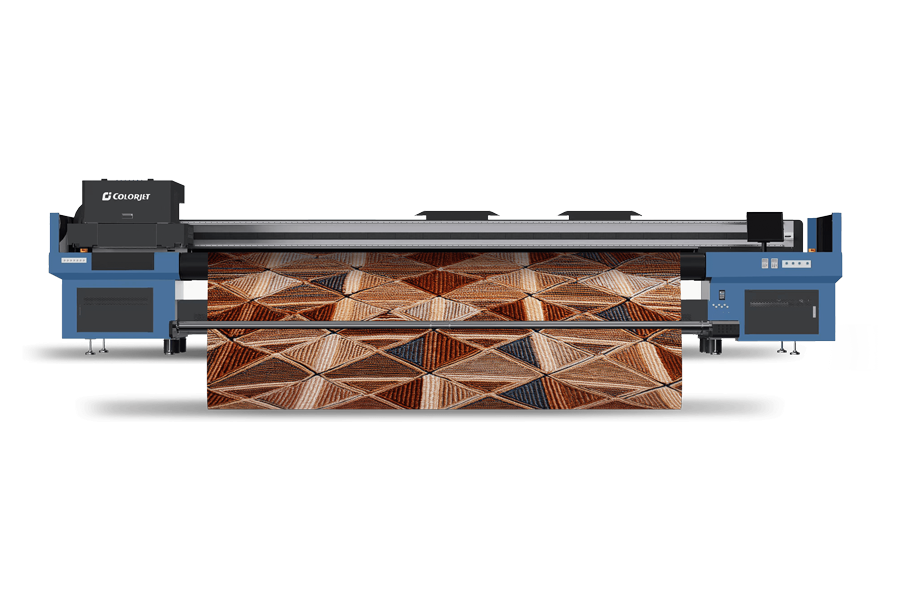

CarpetJet is engineered to revolutionize productivity in digital carpet printing. Delivering an impressive print speed of up to 375 sqm/hr, it features industrial-grade print heads and eco-friendly water-based disperse inks optimized for polyester-based carpets. Designed for precision, efficiency, and sustainability, CarpetJet ensures exceptional print quality across a wide range of carpet applications - from decorative to commercial flooring solutions.
| CARPETJET | ||||
|---|---|---|---|---|
| Parameter | Sub Parameter | PC8484 | PC8324 | PC4164 |
| Printing Technology | Drop-on-demand, Piezo Electric Inkjet | |||
| No. of Print Heads | 48 | 32 | 16 | |
| Print Heads | Type | Industrial Grade Jetting Assemblies – KM 1024i | ||
| Resolution | Up to 1440 DPI | |||
| Height Adjustment | Upto 30mm | |||
| Cleaning Method | Pressure Purge and Wiping | |||
| Wetting Control | Piezoelectric Actuations | |||
| Inks | Types | Disperse | ||
| No. of colors | 8 | 4 | ||
| Supply | 10 Ltr, Bulk Ink Supply System with inline degassing and low ink alarm | |||
| Media | Types | Polyester Based Carpets | ||
| Max. Thickness | Upto 10mm | |||
| Max. Width | 5200mm | |||
| Roll Width / Diameter | 750mm | |||
| Printing Interface | USB 3.1 | |||
| RIP Software Supported | ONYX / NESTampa (Colorgate Editions) | |||
| File Format | JPEG, TIFF, BMP / PDF (RGB, CMYK) | |||
| Operating Conditions | Temperature: 20 to 28°C | Humidity: 65±10% RH (non-condensing) | |||
| Power Requirements | 220V, 20KW Single / Three phase load distribution, 50Hz | |||
| Printer Dimension / Net Weight | 1930 × 7850 × 1650 mm (W×H×D) Approx. | |||
| Feeder Unit Dimension / Net Weight | 1000 × 5500 × 1500 mm (L×W×H) Approx. | |||
| Color Fixation / Take-up System | Take-up should be with the dryer, and the dryer should be customized and optional based on customer application/requirements | |||
| Speed In (Sqm/hr) | ||||
| Print DPI | Passes | PC8484 | PC8324 | PC4164 |
| 360×720 | 2 | 375 | 250 | 260 |
| 360×1080 | 3 | 250 | 183 | 195 |
| *Actual speed may vary based on application and future developments | ||||
Printer Highlights
Wide-format Capability
5.2m printing width, ideal for large carpets and rugs.
High Productivity
Up to 375 sqm/hr, significantly boosting throughput.
Reduced Downtime
Anti-static and anti-crash systems for nozzle protection.
Color Depth & Quality
Excellent penetration and vibrant color reproduction with special disperse inks.
Versatile Applications
Residential, commercial, and customized carpet designs.
Color Options
Available in 4-color (CMYK) and 8-color (CMYK+4) setups
