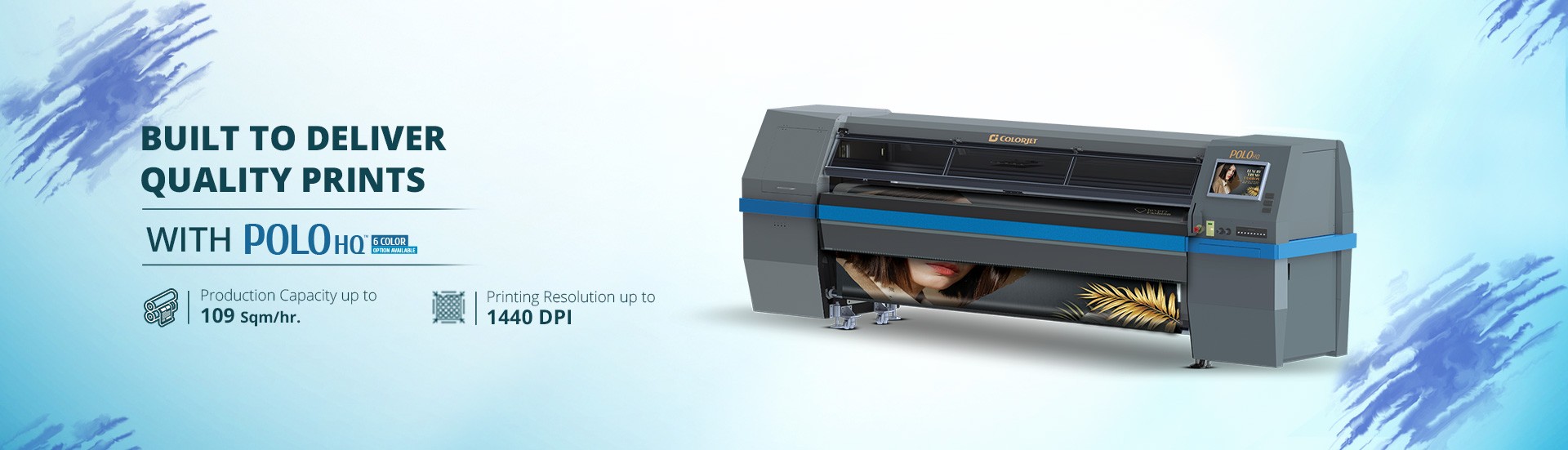

POLO HQ : HIGH SPEED ECO-SOLVENT INDUSTRIAL PRINTER


POLO HQ, the high-speed Industrial grade eco-solvent printer is built for speed & quality. At a speed of 109 sqm/hr. POLO HQ displays quality print for mass production supported by IR based effective evaporative drying system to meet the high volume requirement. The 3.2 mtr roll-to-roll eco-solvent printer based on industrial grade jetting assembly ensures accuracy at high speed. The environment-friendly POLO HQ is built on heavy duty structure made with high mechanical precision standard to meet the growing requirement of those who want speed with quality.

GREEN TECH INK MECHANISM

Polo HQ is highly eco-friendly and is based on Colorjet's GreenTech. GreenTech was born out of Colorjet's commitment to printing solutions in the eco friendly green printing domain. GreenTech is powered by Colorjet's unique GreenTech printing technology that enables printing with environment friendly eco solvent inks. GreenTech ensures low chemical emissions to reduce environmental and health hazards. GreenTech eliminates harmful cyclohaexanone and uses non volatile organic compounds(NVOCs) for print results that are water resistant, fade resistant, media independent and UV safe in addition to being more environment friendly. GreenTech works towards complete solutions that adequately successfully address human, environment, and commercial issue.


FEATURES

POLO HQ : HIGH SPEED ECO-SOLVENT INDUSTRIAL PRINTER


aivc technology

SPECIALLY DEVELOPED AIVC

  • Proprietory AIVC technology for consistent print performance
    by maintaining constant Jetting conditions even in varying
    environmental conditions

INDUSTRIAL GRADE JETTING ASSEMBLY

  • Superior print-head durability ensures longer lifespan.
  • Consistent print quality across the entire machine lifespan.
  • Consistent performance even with varying viscosity.
  • Low maintainance, easy to handle, less operational wastage.

PROPRIETARY SYNCHRONIZED RIP DRIVER

  • Equipped with advance color management engine and color processing tools.
  • Faster processing of files saves time, increases productivity.
  • User-friendly and easy to use color controls to manage colors.
  • Advanced dither patterns for photo-realistic output.
  • Fully customized printer setting for enhanced print results.
  • Smoother gradations, vibrant colors for superior print quality.
  • Inbuilt ICC profiles for various media and print modes.
rip software

capping

FEED SYSTEM

  • Motorized dual roller feed system with ratchet ensures
    minimal space requirement for loading and unloading media
  • Advanced media sensor to sense black and white media.
  • Rubberised puller roller for smooth feeding.
  • Precisely engineered pinch rollers to hold heavy media.

HIGH GRADE BUILD QUALITY

  • Industrial grade heavy duty frame to reduce vibration
  • Mechanical precision, best mechanical manufacturing
    process and components.

TAKE UP SYSTEM

  • Intelligently controlled take-up system for winding of media

HEAD HEIGHT ADJUSTMENT

  • Enables usage of up to 5mm thick media
  • Can be varied during print jobs to reduce wastage
head height adjustment

IR based technology

VACUUM BED

  • Sectioned vacuum bed
  • Adjustable vacuum power to keep media flat and wrinkle free
  • Ensures consistent print quality and low wastage

IR BASED DRYER

  • Equipped with IR heater and controllable drying fan
  • Shortens print-to application time

INK

  • Non-polluting aqueous based inks
  • Wider color gamut of inks for vibrant color prints
  • High density colors for higher coverage per liter.
  • Fast drying.
  • Optimized for best performance and longevity of print heads.


SPECIFICATION


POLO HQ

Models
G4425
G6625
Printing Technology
Drop-on-demand, Piezo electric inkjet
Print Head
Grayscale Industrial Grade Jetting Assemblies
No. of Print Heads
4 / 6
Media Width
3300 mm
Thickness
Maximum 3.00 mm with liner
Roll Outer Diameter
Maximum 3.52 mm
Roll Weight
Maximum 150 Kg
Core Diameter
76.2mm, 50.8mm
Types
Fabric (Ecosolvent based), SAV, PVC Banner, Backlit Film, Window Film
Printing Width
Maximum 3200mm
Inks Types
Eco Solvent Ink
Color
4 Colors
6 Color
Printing Resolution (dots per inch)
Maximum up to 1440 dpi
Distance Accuracy
Error of less than ±0.3 % of distance travelled, or ±0.3 mm, whichever is greater
Media Heating System

Pre Heater and Post-heater, setting range for the preset temprature: 30 to 60℃, Dryer setting range for the preset temperature : 30 to 60℃

Connectivity
High Speed USB
Power Requirements
AC 220 V ±10%, 20 A, 50/60 Hz
Dimensions ( Printer only)
4960mm x 950mm x 1580mm (LxWxH)
RIP software
Onyx Gamaprint Rip (Colorjet Edition)
Weight (approx. with stand)
1500 Kgs N.W., 1650 Kgs G.W.
Environmental Power ON
Temperature: 18 to 28℃ Humidity: 35 to 80%RH (non-condensing)
Power OFF
Temperature: 5 to 40℃ Humidity: 20 to 80%RH (non-condensing)
Modes
DPI
Passes
SqMtr/Hour
SqFt/Hour
Mode I
540x720
2
109
1175
Mode II
540x1080
3
73
785
Mode III
540x1440
4
46
495
Mode IV
540x1080
6
38
410
Mode V
540x1440
8
26
280

APPLICATIONS


Car Wraps

Soft Solvent Printer Application

Floor Graphics

Soft Solvent Printer Application

Building Drop Downs

Soft Solvent Printer Application

Airport Branding

Soft Solvent Printer Application

Backdrops

Soft Solvent Printer Application

Backlit Bus Shelter

Soft Solvent Printer Application

Building Wraps

Soft Solvent Printer Application

Flags/Banners

Soft Solvent Printer Application
