UV Hybrid Printer - Flatbed / Roll to Roll Printer
Specification

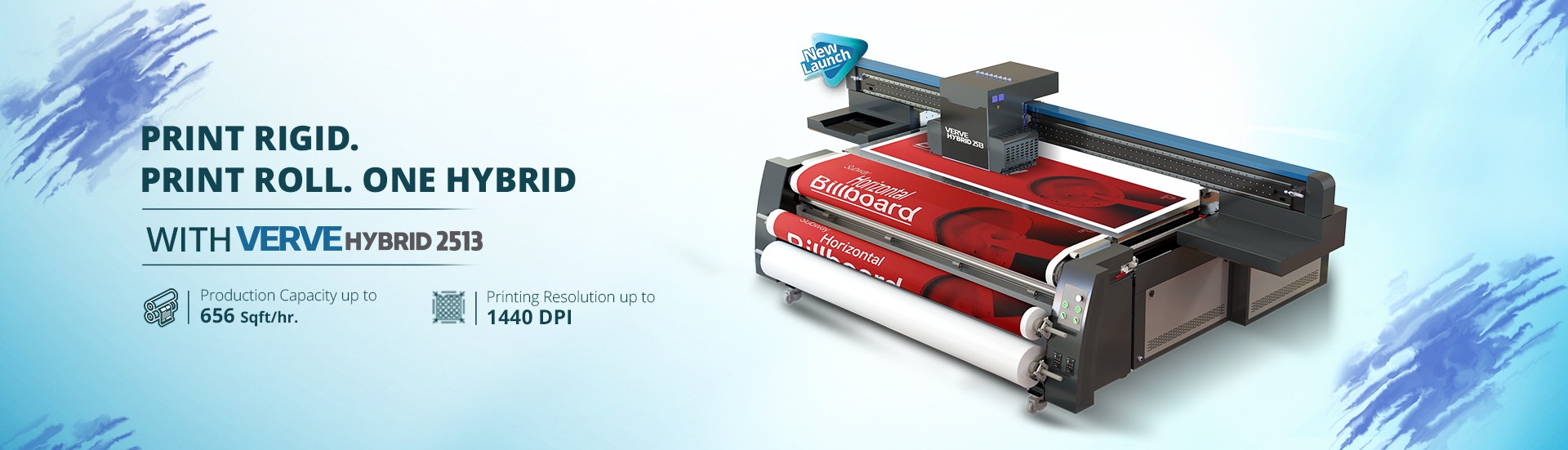

VERVE HYBRID 2513 is a next-generation hybrid UV printer designed for versatility and precision. With a 2500 × 1300 mm flatbed and 2500 mm roll-to-roll capability, it seamlessly handles both rigid and flexible media on a single platform.
The stable flatbed structure and robust gantry ensure consistent, high-quality prints on materials such as glass, wood, acrylic, metal, vinyl, fabric, and canvas. This hybrid UV printer is engineered for reliable performance, productivity, and superior print results across multiple applications.
| VERVE HYBRID 2513 | ||||
|---|---|---|---|---|
| Models | YA2513M | |||
| Printing Technology | Drop-on-demand, Piezo Electric Inkjet | |||
| Print Head Type | Industrial Grade Jetting Assemblies | |||
| No. of Print Heads | 4 to15 | |||
| Media | Size | 2.55 m x 1.35 m || 2.5m x Unlimited Roll | ||
| Thickness | Maximum 100 mm | |||
| Handling | Suction | |||
| Printing Size | 2.5 m x 1.3 m | |||
| Curing System | Dual UV LED Lamps | |||
| Ink | Type | UV LED Curable Ink | ||
| System | Bulk Ink Refillable System | |||
| Colors | CMYK + W + V | |||
| Printing Resolution (dots per inch) | 1440 DPI | |||
| Distance Accuracy | Error of less than ± 0.3 % of distance travelled, or ± 0.3 mm, whichever is greater | |||
| Connectivity/Interface | USB 3.0 | |||
| Power Requirements | AC 220 V, 30 A, 50/60 Hz | |||
| Dimensions (Printer Only)(LxWxH) | 4450 mm x 2750 mm x 2750 mm | |||
| RIP Software | Onyx (ColorJet Edition) | |||
| Weight | N.W. 2100 Kg, G.W. 2350 Kg | |||
| Environmental | Power ON | Temperature 18 to 28° C, Humidity 20 to 60%RH (Non-condensing) | ||
| Power OFF | Temperature 5 to 40° C, Humidity 20 to 80%RH (Non-condensing) | |||
| Print Speed (In Sq. ft / Hrs) | ||||
| Mode | Print DPI | Passes | 1 Row | 2 Row |
| Mode 1 | 540x720 | 4 | 365 | 656 |
| Mode 2 | 540x1080 | 6 | 247 | 441 |
| Mode 3 | 540x1440 | 8 | 182 | 322 |
Printer Highlights
Maglev Linear Motor (X-Axis Movement)
4-Zone Vacuum System
Anti-Static Ioniser
Anti-Crash System
Dual Negative Pressure Ink System
White Ink Circulation system
